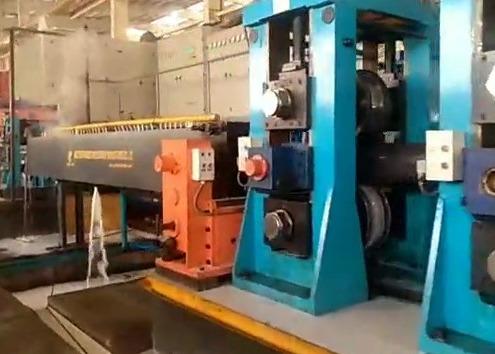

High Frequency Welded 60m/Min 1.5mm Square Tube Mill

  • 1
  • 2

Brand Name : Tengtian

Model Number : HG114

Certification : CE, ISO9001, BV

Place of Origin : Hebei，China

MOQ : 1 Set

Price : Negotiate

Payment Terms : L/C, T/T, Western Union

Supply Ability : 40 Sets/Year

Delivery Time : 120 work days

Packaging Details : Export waterproof and Seaworthy packing.

Mill speed : 30-60m/min

Installed capacity : 800KVA

Thickness of Round pipe : 1.5-5.0mm

Thickness of Square&Rectangular pipe : :1.5-4.5mm

Processing range:Round pipe : Φ60-Φ140mm.

Square&Rectangular pipe : 50x50—110x110

Pipe shape : Rectangle,round,square

Material : low alloy constructional steel

Contact Now

Product Description

HG114 High-Frequency Welded Pipe Production Line is designed to produce welded pipes of 60~140mm in diameter and 1.5~5.0mm in wall thickness as well as square and rectangular pipes and deformed pipes of the corresponding size.This production line’s each unit equipment, full use of the domestic and foreign similar equipment, innovative design, advanced technology, convenient operation and maintenance, and reached the international leading level.

1. Adapt materials:
Hot rolled or cold rolled steel strip
Material : Low carbon steel and low alloy constructional steel
δs≤345Mpa δb≤610Mpa
2.Processing steel pipe size range:
(1)Processing range:Round pipe Φ60-Φ140mm.
Square&Rectangular pipe 50x50—110x110
(2)Thickness of Round pipe :1.5-5.0mm
Thickness of Square&Rectangular pipe :1.5-4.5mm
3.Installed capacity: 800KVA
4.Water consumption: 50m3/h
5.Solid-state high-frequency Welder:300KW or 400KW
6.Workshop Request:length, width and height 50m X 12m X 6m
7.Forming speed:40-60m/min

More Specification

Model Diameter(mm) Thickness(mm) Speed(m/min) Main power(kw) HF welder(KW) Area(m2)
HG32 10-32 0.4-1.5 30-100 250 100 12x100
HG50 12-50 0.6-2.5 30-90 300 150 12x100
HG76 12-76 1-3 30-90 320 200 12x100
HG89 32-89 1-4 30-80 350 300 12x100
HG114 45-114 1.5-5.0 30-60 400 300 12x100
HG165 60-165 3-7 30-50 600 400 12x100
HG219 114-219 4-8 20-40 800 500 15x150
HG273 114-273 4-10 15-30 1000 600 18x160
HG325 165-325 4-10 10-30 1200 600 12x100
HG426 165-426 4-12.7 8-25 1400 800 12x100
HG508 219-508 4-16 8-20 2000 1000 12x100
