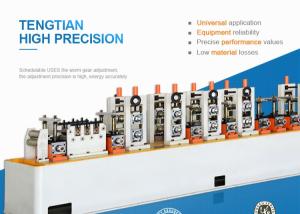

4mm High Precision Rectangular and Square Tube Mill

  • 1
  • 2

Brand Name : Tengtian

Model Number : HG76

Certification : CE / ISO

Place of Origin : China

MOQ : 1 Set

Price : Negotiable according to different sizes of machine

Payment Terms : T/T, L/C

Supply Ability : 100 Sets/Year

Delivery Time : 2 Months - 4 Months

Packaging Details : Special export packing, and fixed in container

Cutting Saw : Cold Saw & Friction Saw Cutting

Feature : High Precision; More Stable; High Speed;

Customized : Machine Designing As Per Customer Requirement

Welding Speed : 30-100m/min

Raw Material : HRC, CRC, Galvanised Steel

Applicable Industries : 4mm High Precision Rectangular and Square Tube Mill

Power : 350KW

Pipe Wall Thickness : 0.7-4mm

Contact Now

4mm High Precision Rectangular and Square Tube Mill of Overview
Quick Details
Applicable Industries:
Building Material Shops, Construction works
After Warranty Service:
Video technical support, Online support
Local Service Location:
Egypt, Pakistan, India
Showroom Location:
Egypt, India, Malaysia
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 Year
Core Components:
Engine, Bearing, Motor, Gear
Condition:
New
Type:
Pipe Production Line
Pipe Material:
Carbon Steel
Application:
Energy Supply Pipe
Production Capacity:
30-100m/min
Place of Origin:
Hebei, China
Brand Name:
Tengtian
Voltage:
380V/220V
Power:
200KW
Dimension(L*W*H):
40m*3m*2m
Weight:
15-25T
Certification:
ISO9001,CE,BV
Warranty:
One Year, One year
Key Selling Points:
Easy to Operate
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
High precision rectangular pipes welding erw tube rolling machine
Pipe diameter:
25-76MM
Pipe Thickness:
1-4MM
Service:
OEM
Pipe shape:
Rectangle,round,square
Material of Pipe:
Carbon Steel , Stainless Steel and Galvanized Steel
Color:
White
Usage:
Construction Pipe
Supply Ability
Supply Ability
1200 Unit/Units per Year High precision tube mill
Packaging & Delivery
Packaging Details
wooden case
Port
Tianjin Port
4mm High Precision Rectangular and Square Tube Mill

High precision rectangular pipes welding erw tube rolling machine

Product Description

The HG76 mill is used to manufacture of round pipe of Φ25mm-Φ76mm with thickness of 1.0mm-4.0mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.

The High precision tube mill has some advantages as follow:

between level roller jumps 0.01,between frame and slide clearance ≤0.02mm, frame vertical degree ≤0.05, each frame parallel degree ≤0.1mm
steel pipe diameter and roundness error≤0.08mm.

4mm High Precision Rectangular and Square Tube Mill

Product Process:

material(steel coil)→uncoiler→shear and welder→horizontal(or cage) accumulator→forming mill→

HF soild welder→sizing mill→rounghly straightening(turkey head)→cut off machine→run out table

The Basic Parameters:

stands of forming mill 7
stands of sizing mill 5
shaft material 40Cr
round pipe diameter 19-76mm
Round pipe thickness 1.5-3.0mm
square pipe size 15×15-60×60mm
square pipe thickness 1.5-2.0mm
we can design the machine according to the customer detail require.
ERW Tube Mill Other Model:
Model Diameter Range Pipe Thickness Line Speed(m/min)
HG20 8-25.4MM 0.3-1.2MM 120
HG32 10-32MM 1.4-1.5MM 120
HG50 16-76MM 0.7-2.5MM 30-120
HG76 25-76MM 1-4MM 30-100
HG89 32-89MM 1-4.5MM 30-80
HG114 45-114MM 1.5-5.0MM 30-60
HG165 60-165MM 3-7MM 30-50
HG219 114-219MM 4-8MM 20-40
HG273 114-273MM 4-10MM 15-30
HG325 165-325MM 4-10MM 10-30
HG426 165-426MM 4-12.7MM 8-25
HG508 219-508MM 4-16MM 8-20
4mm High Precision Rectangular and Square Tube Mill
