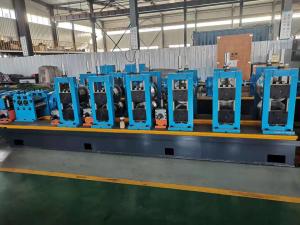

Thickness10mm Dia 70x70mm Quick Change Erw Include Rollers Square Tube Mill
Machine General Introduction
It is designed to produce welded steel pipes ,include round pipe , squre pipe and deformed pipe.
Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.
Our Advantage
Tengtian stainless steel tube machine manufacturer rolling mill quality precision seamless steel pipe making line for tube mill features:
1.Take continuous production,there is no need to change the rollers in rough-forming section.
2.The quality mill is reliable in the welding seam technology.
3.The pipe produced by welded pipe mill covers most ss pipes which are currently used by build
construction.
4.Straight seam welded pipe mill shares outstanding advantages such as low production cost and high
production capacity.
Main Parameters and Specifications
| (1)Material Specifications: |
| Standard | carbon steel, hot galvanized steel |
| Material | Low carbon steel and low alloy constructional steel |
| Mechanical properties | σb≤520Mpa,σs≤365MPa |
| Strip Width | 110-280mm |
| Strip Thickness: | 1-5mm |
| Inner Diameter of Coils | Φ508mm |
| Outer Diameter of Coils | Φ1300～φ2000mm |
| Coil Weight | ≤11T |
| (2)Pipe Specification |
| Pipe Diameter | Square pipe :30x30-70x70mm Thickness:1-5mm |
| Length | 6m |
| Pipe-cutting Precision | 0-6mm |
| Forming Speed | Max 160m/min for 2mm thickness |
| (3)The buyer should self-supply |
| Work shop | 95x12m, H＞5m(crane to ground) |
| Power | Approx.850KW 380V/60Hz/3phases |
| Circulation Cooling Water(whole system) | Flow:30+30 CBM Pool Volume:40m3 |
| Compressed Air (whole system) | Flow:5m3/min Pressure: 5-7kg/ cm2 |
| Cable | All cable outside of my machine, you buy after machine fix location. |
Working Process
strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package
Service
1)Packing: Sea worthy packing, the mechanical parts are in nude pack, and the electrical arts and the spare parts are simply packed.
2) Quality Assurance: the Seller manufactures the equipment according to the relevant standards strictly and tests the equipment according to the technical documents.
3) Installation: three engineers will be dispatched to Buyer factory for installation and test running. The buyer should charge of return ticket, food and accommodation abroad and pay USD60/person/day for salary.
4) Warranty: we guarantee one year’s warranty after test running. (The matters caused by Buyer’s fault and the lack of Buyer’s maintenance shall not be covered). And we offer lifelong technical service and fast-response technical support to Buyer.
Packaging & Delivery
Packaging Details
This kind of machine should adopt nude packaging and sea shipping by container.
Delivery Time
Shipped in 45 days after payment
Our Factory
Hebei tengtian weldedpipe equipment manufacturing co.,ltd is a collection of scientific research,production ,sales and service as one of the high frequency welded pipe equipment and opening cold bend steel equipment professional manufacturers.Our company is specializing in the production of high-frequency welded pipe,slitting,opening cold bend steel,stainless steel units and other equipment of the enterprise,the company has a skilled and business ability strong vibrant team.has been exported to South Korea,Vietnam,Indonesia,South Africa,Kazakhstan and other dozens of countries and regions,by domestic and foreign merchants high praise.
