Building Bearing Beam Steel Punchable Metal Pipe Making Machine 80m/Min

  • 1
  • 2
  • 3

Brand Name : TengTian

Model Number : H C Ω

Certification : CE, ISO9001, BV

Place of Origin : Hebei

MOQ : 1 Set

Price : $100000 to $1 million

Payment Terms : L/C, T/T

Supply Ability : 50 Sets/Year

Delivery Time : 120 work days

Packaging Details : Export waterproof and Seaworthy packing.

Name : Building Bearing Beam Steel Punchable Steel Tube Making Machine 80m/Min

Applicable materials : Structural steel

Equipment Specification : customer determined

Cutting method : Cold Saw

Forming method : Roller Forming

speed : 80 m/min

Warranty : One year

Material : Low carbon HRC

Forming type : direct forming

Work shop : 80 x 12 m, H＞5m ( crane to ground )

Contact Now

Building Bearing Beam Steel Punchable Steel Tube Making Machine 80m/Min

Special Shape Steel Hard Press closed Profile Steel Tube Making Machine

I. Common product specifications

No. Model Pipe Size Thickness Speed(m/min) Capacity(KW) HF(KW) Area(LxW in Metres)
1 HG20 ø8 - ø20 mm 0.3 - 1.5 mm 30 - 150 210 100 40*12
2 HG32 ø10 - ø32 mm 0.4 - 2.0 mm 30 - 150 300 150 40*12
3 HG50 ø16 - ø50 mm 0.7 -2.5 mm 30 - 150 410 200 60*12
4 HG60 ø22 - ø60 mm 0.9 - 3.0 mm 30 - 150 410 200 60*12
5 HG76 Ø25 - ø76 mm 1 - 4 mm 30 - 120 580 300 80*16
6 HG89 Ø32 - ø89 mm 1 - 4.5 mm 30 - 100 660 300 100*16
7 HG114 Ø45 - ø114 mm 1.5 -5 mm 30 - 80 920 400 100*16
8 HG140 Ø50 - ø140 mm 1.5 - 5.5 mm 30 - 80 920 400 100*16
9 HG165 Ø60 - ø165 mm 2 - 6 mm 30 - 60 1100 500 100*16
10 HG219 Ø114 - ø219mm 3 - 8 mm 20 - 45 1400 600 150*16
11 HG273 Ø114 - ø273mm 4 - 12 mm 15 - 30 2100 800 160*18
12 HG325 Ø165 - ø325 mm 4 - 14 mm 10 - 30 2500 1000 200*24
13 HG426 Ø165 - ø426 mm 4 - 16 mm 8 - 25 2900 1200 250*24
14 HG508 Ø219 - ø508 mm 5 - 18 mm 5 - 18 3400 1600 300*24
15 HG610 Ø355 - ø610 mm 5 - 18 mm 5 - 18 3700 1600 300*24
16 HG760 Ø426 - ø760 mm 5 - 20 mm 5 - 20 4300 1800 300*24

II.Equipment composition

uncoiler :The Single Cone winding is of the structure of double expansion and cantilever mandrels. It contains two main parts: main body and the fixed base. The main body is equipped with pneumatic system to satisfy the needs of expanding, contracting and braking of the mandrels.

Straightener & leveler :The Straightener is main used to lead the new coil steel head feed into the leveler after uncoiler unit bring the coil into the working place. The Leveler is main used to flatten the head and trail of the strip steel and prepare for the next step shear and welding, so as to ensure the strip steel opposed flate and straight in the shear welding.

Automatic shear and welding : Used to cut off the irregular part of the tape head and tail, and align the tape tail of the previous coil with the tape head of the next coil, and weld them together.

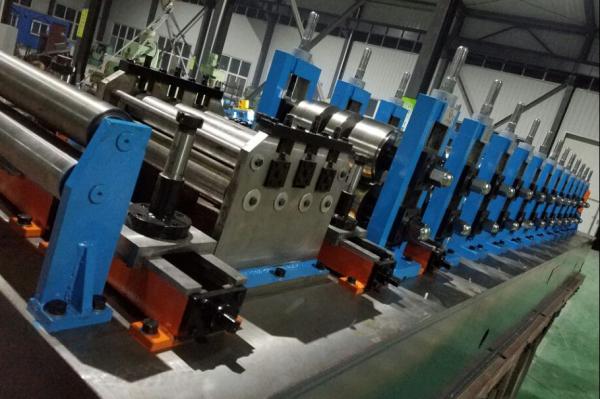

Forming and sizing part : this part cold-bends the steel strip into a set shape. The size can be adjusted by the servo motor.

Cutting machine : It is used for material cutting of continuous non-stop cutting steel pipes to length. The high-power servo is equipped with a high-precision reducer and imported rack and pinion transmission. The accuracy of cutting (hole distance) is ±1mm. Install imported high-precision linear guide rail and protective cover

III. Factory appearance

Building Bearing Beam Steel Punchable Metal Pipe Making Machine 80m/MinBuilding Bearing Beam Steel Punchable Metal Pipe Making Machine 80m/Min

Building Bearing Beam Steel Punchable Metal Pipe Making Machine 80m/Min
