Lw Series Unit Combined Welded Pipe Mill Tube Machine Ff Forming Technology

Name: Lw Series Unit Combined Welded Pipe Mill Tube Machine Ff Forming Technology
Brand: TengTian
Price: 100000 USD

China Lw Series Unit Combined Welded Pipe Mill Tube Machine Ff Forming Technology factory

Brand Name : TengTian

Model Number : HG127

Certification : CE, ISO9001, BV

Place of Origin : Hebei

MOQ : 1 Set

Price : $100000 to $1 million

Payment Terms : L/C, T/T

Supply Ability : 50 Sets/Year

Delivery Time : 60 work days

Packaging Details : Export waterproof and Seaworthy packing.

product name : Lw Series Unit Combined Welded Pipe Mill Tube Machine Ff Forming Technology

Coil Thickness : 1.5～4.5mm

Coil Width : 160～400mm

Inner diameter : φ508～φ610mm

Outer diameter : φ1500～φ2000mm

speed : 75X45—80m/min；100X100—60m/min

Warranty : One year

Material : Low carbon HRC

keywords : Welded Pipe Mill Tube Machine

Contact Now

LW Series Unit Combined Welding Tube Machine FF Forming Technology Weld Pipe Mill

I. Material Specifications:

Conforming to the YB189-64 standard

Material : Low carbon steel and low alloy constructional steel

Mechanical properties: σb≤520Mpa,σs≤365MPa

strip width:160～400mm

strip thickness:1.5～4.5mm

Inner Diameter of Coils:φ508～φ610mm

Outer Diameter of Coils:φ1500～φ2000mm

Coil Weight:≤10.0T

II. Welded Pipe Specification

Round Pipe Diameter :φ40～φ127mm

Square pipe size:40×40-100×100mm

Round pipe thickness:1.5～4.5mm

Square pipe thickness:1.5- 4.5mm

Finish pipe length:4～12m

Cut accuracy:±1.5mm

Forming speed:75X45—80m/min；100X100—60m/min

Power, Water & Air Supply

1	Power	Power Volume of the Line	Approx.900KW
		Power Source	380V/60Hz/3phases
2	Circulation Cooling Water	Flow	20T/h～30 T/h
		Pool Volume	30m3
3	Compressed Air	Flow	5m3/min
		Pressure	5～11kg/ cm2

III. Product process:

Coil Loading → Uncoiling →Cutting and Welding →Horizontal Spiral Accumulator → Forming, HF welding, Deburring, Cooling, Sizing, Straightening →cutting saw → Packing → Storage

IV. Main parameters of each unit.

coil out diameter	Φ1600-2000mm
coil inner diameter	Φ508-610mm
strip width	160-400mm
strip width	1.5-4.5mm
strip weight	Max7.0T
expand type	hydraulic expand,sliding block structure
break	Pneumatic drive,2 pcs disc break
mandrel material	40Cr,HB220-260
center higher	1100mm

Lw Series Unit Combined Welded Pipe Mill Tube Machine Ff Forming Technology

Product Tags:

unit combined welded pipe mill

ff forming technology welded pipe mill

ff forming technology welded tube mill

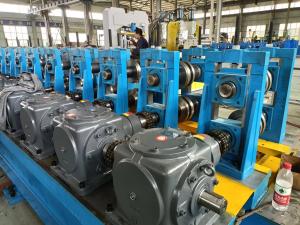

Lw Series Unit Combined Welded Pipe Mill Tube Machine Ff Forming Technology Images
